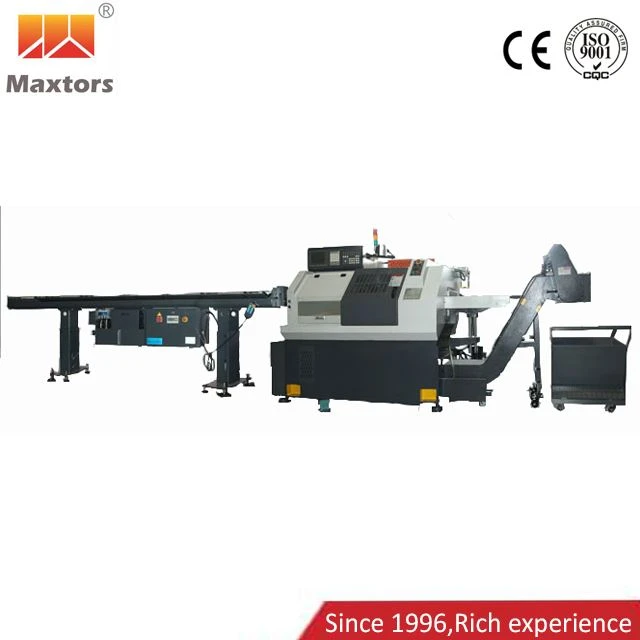

CNC tour fraisage

Travay
Kapasite

Max balanse dia.over kabann

manm

Φ480

Φ480

Φ520

Wotè soti nan plak glisman rive nan sant spindle

manm

111

111

111

Max.Vire Dia.

manm

Φ380

Φ380

Φ380

Max.Workpiece Longè

manm

360

360

360

vire

Spindle Thru-Hole Dia.

manm

Φ56

Φ58

Φ56

Kalite koton

/

A2-5

A2-6

A2-5

Gwosè Chuck

Pous

6

8

6

Max. Vitès koton

.rpm

4000

4000

4000

Max.Bar Dia.Pass Spindle

mm

Φ33

Φ45

Φ33

Motè Spindlel

KW

5.5

7.5

5.5

Manje

Vwayaj X Aks

manm

430

430

180

Z aks vwayaj

manm

450

450

450

Vwayaj aks Y

manm

/

/

/

X/Z aks motè koupl

N.m

9.6

9.6

9.6

Viv Tourèl Live Zouti Motor Torque

/

/

/

X Aks Ballscrew dia./Pitch

manm

Φ32/10

Φ32/10

Φ32/10

Z aks boul dia./Pitch

manm

Φ32/10

Φ32/10

Φ32/10

Y aks boul dia./Pitch

manm

/

/

/

Rapid federasyon (X/Z/Y)

m/min

X25/Z25

X25/Z25

X25/Z25

Zouti tourèl

Kalite zouti

/

/

sèrvo

Zouti No.

/

/

8/12

Tan Chanjman Zouti (adjasan)

s

/

/

0.35

Size Holder Zouti

manm

20×20/Φ32/Φ25

20×20/Φ32/Φ25

20×20/Φ32

Zouti Kalite Gang

Kalite detantè zouti

2 Ansanm (Squre & Round)

2 kare plis 2 wonn

2 Ansanm (Squre & Round)

Taystock

Tailstock manch rad

/

MT4

Tailstock manch dia./ Vwayaj

manm

Φ63/80

Presizyon

Presizyon pozisyon (X/Z/Y)

±0.008/300

±0.008/300

±0.008/300

Presizyon re-pozisyon (X/Z/Y)

±0.004/300

±0.004/300

±0.004/300

Lòt moun

Gwosè machin (L × W × H)

mm

2220×1610×1800

2220×1610×1800

2220×1610×1800

Pwa machin

KG

3000

3000

3300

CNC Kontwolè

SYNTEC 21TA

Std.

Std.

Std.

FANUC/Siemens/Mitsubishi

Patisipe.

Patisipe.

Patisipe.
