16 ATC otomatik CNC engraving machin
16 ATC otomatik CNC engraving machin
Estanda ak ER40 18000RPM Spindle
Si ou vle 16T ATC ak BT30 Spindle

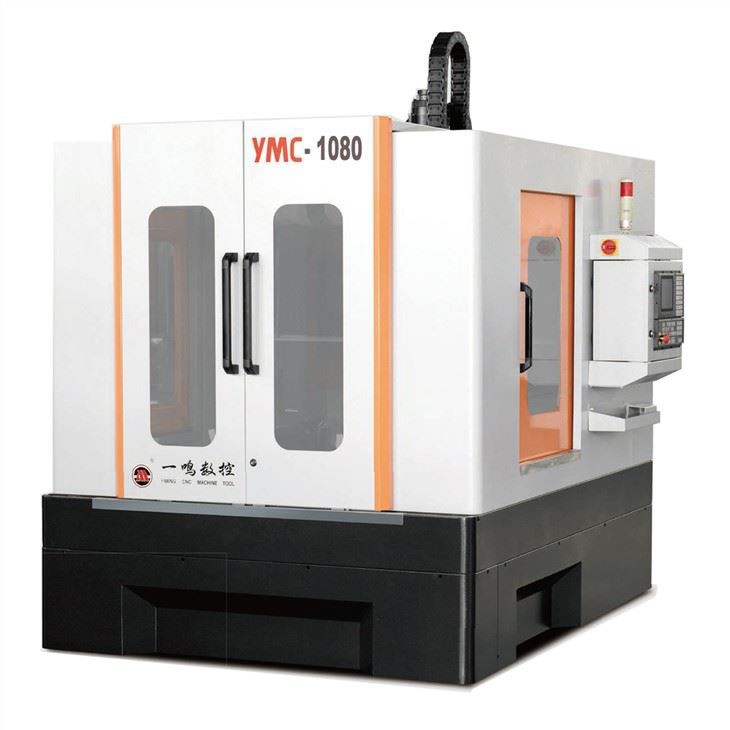

YMC-1080 16 ATC otomatik CNC grave machin ki te pwodwi pa Maxtors CNC
Estanda ak 8KW ER40 18000RPM
16 ATC otomatik CNC grave machin 3 aks vwayaj:
800x1000x350mm
LNC 528 TAIWAN Kontwolè
estanda ak 3 aks ak 4yèm aks divize tèt ka enstale .usually gen dia.125mm, 160mm, 170mm ak elatriye ak tailstock manyèl.
si ou bezwen 16T ATC, Pral sèvi ak BT30 Spindle ak 16T Otomatik chanje zouti, sa a se opsyonèl jan ou mande yo.
Spindle elektrik CNC Gravure machin spesifikasyon
| Atik | Inite | YMC-1080 |
| Vwayaje | ||
| X/Y/Z vwayaj | manm | 850×1050×350 |
| Nen koton sou tab (Appr.) | manm | 460 |
| Distans ant kolòn (apwopriye) | manm | 950 |
| Tablo | ||
| Gwosè tab la | manm | 1000×795 |
| T-plas | manm | 6-14×130 |
| Max.Chajman | KG | 600 |
| Distans ant Kolòn | mm | 950 |
| vire | ||
| Max.Spindle vitès | .rpm | 18000 |
| Pouvwa motè koton | KW | 8 |
| vire Tape | ER40 | |
| Manje | ||
| Rapid vitès (X/Y/Z) | m/min | 15/15/7.5 |
| Koupe feedrate | m/min | 6 |
| Presizyon | ||
| Pozisyon Presizyon | manm | ±0.008/300 |
| Re-Pozisyon Presizyon | manm | ±0.005/300 |
| Lòt atik | ||
| Kondisyon pou pouvwa | KVA | 20 |
| Antre Voltage | Vòlt | 220V~440V |
| Anprint machin (L × W) | manm | 2600×2200 |
| Wotè machin | manm | 2550 |
| Pwa | T | 5.1 |
| CNC Kontwolè | LNC528 | |
Plis diferan gwosè ki disponib:
YMC-4535: 3 Aks vwayaj: 350x450x150mm

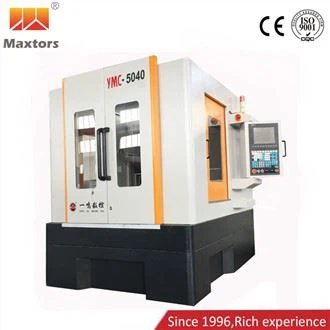

YMC-5040: 3 Aks vwayaj: 400x500x160mm
YMC-6050: 3 Aks vwayaj: 500x600x230mm
YMC-7060: 3 Aks vwayaj: 600x700x270mm
YMC-8070: 3 Aks vwayaj: 700x800x300mm
YMC-1210: 3 Aks vwayaj: 1000x1200x400mm
Baj popilè: 16 atc otomatik cnc engraving machin
